Air tool Hose
Connect Coil
With its spring characteristic, this coil won’t get kinks easily, which is appropriate for air tools.
- Material
- Polyurethane product
- Usage
- For air-paint, air-spray, and in-factory air tools
- Features
- Because of a coil form, this product will cover broader working space with fewer kinks and wears.
As the edges are straightened, no hoses are necessary, and the couplers will improve the workability. - Fluids
-
Air
Specifications:Working temperature limit: Between -20℃ and + 80℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Working space(m) | Brackets of both ends | Maximum working pressure MPa at 20℃ | Delivery unit |
| CHU-5080-3 | 5.0 | 8.0 | 2.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-5080-5 | 5.0 | 8.0 | 4.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-5080-7 | 5.0 | 8.0 | 6.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-5080-10 | 5.0 | 8.0 | 8.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-6510-3 | 6.5 | 10.0 | 2.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-6510-5 | 6.5 | 10.0 | 4.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-6510-7 | 6.5 | 10.0 | 6.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-6510-10 | 6.5 | 10.0 | 8.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-8012-3 | 8.0 | 12.0 | 2.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-8012-5 | 8.0 | 12.0 | 4.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU-8012-7 | 8.0 | 12.0 | 6.0 | PF 1/4 Female connector | 0.8 | 10 |
| CHU8012-10 | 8.0 | 12.0 | 8.0 | PF 1/4 Female connector | 0.8 | 10 |

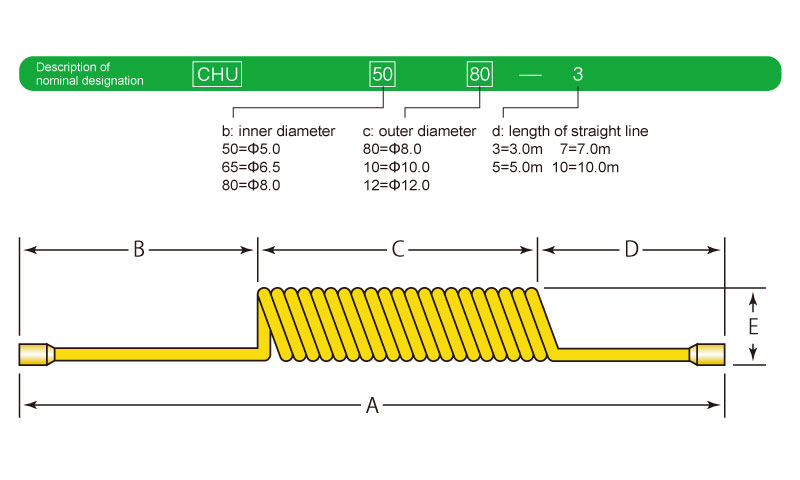

| Nominal designation | A (mm) | B(mm) | C(mm) | D(mm) | E(mm) |
| CHU-5080-3 | 780 | 500 | 180 | 100 | 42.0 |
| CHU-5080-5 | 1,000 | 500 | 400 | 100 | 42.0 |
| CHU-5080-7 | 1,230 | 500 | 630 | 100 | 42.0 |
| CHU-5080-10 | 1,400 | 500 | 800 | 100 | 42.0 |
| CHU-6510-3 | 785 | 500 | 185 | 100 | 52.0 |
| CHU-6510-5 | 1,000 | 500 | 400 | 100 | 52.0 |
| CHU-6510-7 | 1,235 | 500 | 635 | 100 | 52.0 |
| CHU-6510-10 | 1,400 | 500 | 800 | 100 | 52.0 |
| CHU-8012-3 | 780 | 500 | 180 | 100 | 65.0 |
| CHU-8012-5 | 990 | 500 | 390 | 100 | 65.0 |
| CHU-8012-7 | 1,190 | 500 | 590 | 100 | 65.0 |
| CHU8012-10 | 1,380 | 500 | 780 | 100 | 65.0 |
