Air tool Hose

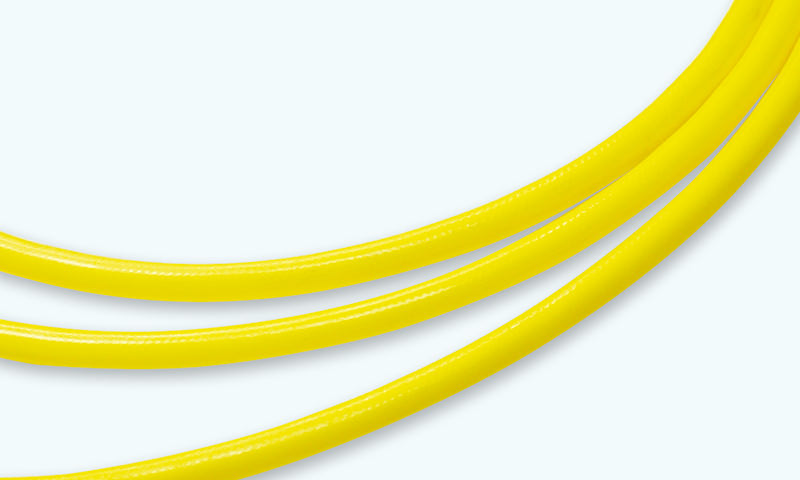

Sun Tech Air Hose
A convenient and affordable air hose combined with a pair of couplers. The hose is available in a variety of different colors.
- Material
- Polyurethane product
- Usage
- For air-paint, air-spray, and in-factory air tools
- Features
- A convenient and affordable air hose with a pair of couplers.
Available in a variety of different colors as orange, green, and yellow. - Fluids
-
Air
Specifications:Working temperature limit: Between -20℃ and + 60℃
| Nominal designation | Inner diameter(mm) | Outer diameter(mm) | Regular size(m) | Maximum working pressure MPa at 20℃ | Minimum bending radius(mm) | Brackets used | Delivery unit | Color |
| STC-7010 | 7.0 | 10.0 | 10 | 1.5 | 40 | Two-touch coupler | 10 | Orange / Yellow / Green |
| STC-7020 | 7.0 | 10.0 | 20 | 1.5 | 40 | Two-touch coupler | 10 | Orange / Yellow / Green |
| STC-7030 | 7.0 | 10.0 | 30 | 1.5 | 40 | Two-touch coupler | 10 | Orange / Yellow / Green |
| STC-7100 | 7.0 | 10.0 | 100 | 1.5 | 40 | ー | ー | Orange |
